DANPEX CORPORATION
EN-2320P2
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|

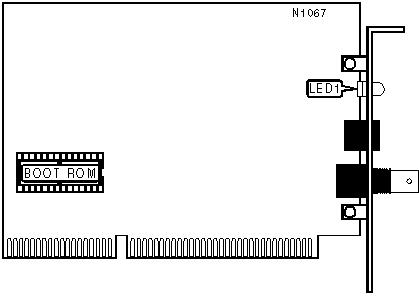

DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Network connection is good |
|
LED1 |
Blinking |
Data is being transmitted/received |
|
LED1 |
Off |
Network connection is broken |
|
|
|
|
 |
|
