DANPEX CORPORATION (ADI SYSTEMS, INC.)
Aquila AQ-NE/2CX (MCA)
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit MCA |
Topology | Linear bus |
Wiring Type | RG-58A/U 50ohm coaxial AUI Transceiver via DB-15 port |
Boot ROM | Available |
CABLE TYPE | |||
Type | JP2A | JP2B - JP2I | |
» | RG-58A/U 50ohm coaxial | Pins 1 & 2 Closed | Pins 2 & 3 Closed |
AUI transceiver via DB-15 port | Pins 1 & 2 Closed | Pins 1 & 2 Closed |
ONBOARD TERMINATOR | ||
Mode | JP3 | |
» | Enable | Pins 1 & 2 Closed |
Disable | Pins 2 & 3 Closed | |
Note:If the card is on either end of a linear bus network segment, the onboard terminator may be used instead
|

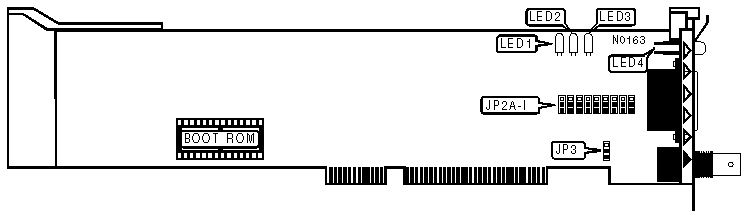

DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | Off | Normal operation |
LED2 | Yellow | Blinking | Data is being transmitted |
LED2 | Yellow | Off | Data is not being transmitted |
LED3 | Red | On | Collision detected on network |
LED3 | Red | Off | No collisions detected on network |
LED4 | Green | Blinking | Data is being received |
LED4 | Green | Off | Data is not being received |
