AQUILA AQ-1000CX Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DANPEX CORPORATION (ADI SYSTEMS, INC.)
AQUILA AQ-1000CX
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI Transceiver via DB-15 port |
|
Boot ROM |
Available |
|
BOOT ROM ADDRESS | |||
|
Address |
JP1A |
JP1B | |
| » |
C8000-CBFFFh |
Open |
Open |
|
CC000-CFFFFh |
Closed |
Open | |
|
D0000-D3FFFh |
Open |
Closed | |
|
D4000-D7FFFh |
Closed |
Closed | |
|
I/O BASE ADDRESS | |||
|
Address |
JP1C |
JP1D | |
|
300-31Fh |
Open |
Open | |
| » |
320-33Fh |
Closed |
Open |
|
340-35Fh |
Open |
Closed | |
|
360-37Fh |
Closed |
Closed | |
|
INTERRUPT REQUEST | ||||||
|
IRQ |
JP2A |
JP2B |
JP2C |
JP2D |
JP2E | |
|
2 |
Closed |
Open |
Open |
Open |
Open | |
| » |
3 |
Open |
Closed |
Open |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Closed |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Closed | |
|
CABLE TYPE | |||
|
Type |
JP3 |
JP4A - JP4F | |
| » |
RG-58A/U 50ohm coaxial |
Open |
Pins 2 & 3 Closed |
|
AUI transceiver via DB-15 port |
Open |
Pins 1 & 2 Closed | |
|

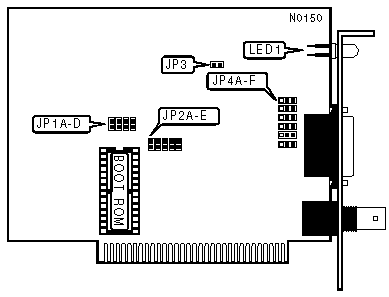

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Data is being transmitted or received |
|
LED1 |
Green |
Off |
Data is not being transmitted or received |
|
|
|
|
 |
|
