DE-500 Network Card Settings and Configuration

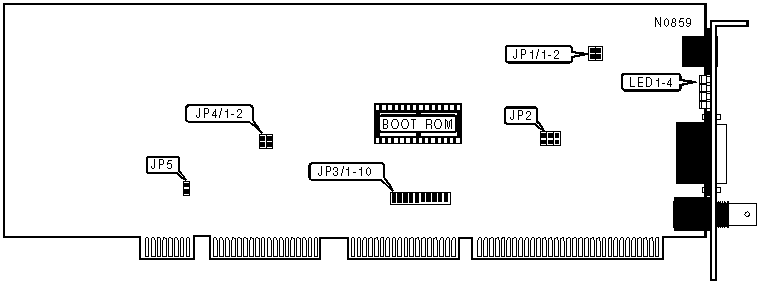

D-LINK
DE-500
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | VESA local bus |
Topology | Linear Bus Star |
Wiring Type | AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial Unshielded twisted pair |
Boot ROM | Available |
CABLE TYPE SELECTION | |||
Cable Type | JP1/1 | JP1/2 | |
» | Unshielded twisted pair | Closed | Open |
AUI Transceiver via DB-15 port | Open | Closed | |
RG-58A/U 50ohm coaxial | Closed | Closed | |
BASE I/O ADDRESS SELECTION | |||
Address | JP4/1 | JP4/2 | |
» | 300-31F | Closed | Closed |
320-33F | Closed | Open | |
340-35F | Open | Closed | |
360-37F | Open | Open | |
INTERRUPT SELECTION | |||||||||||
IRQ | JP3/1 | JP3/2 | JP3/3 | JP3/4 | JP3/5 | JP3/6 | JP3/7 | JP3/8 | JP3/9 | JP3/10 | |
» | 5 | Open | Open | Closed | Open | Open | Open | Open | Open | Open | Open |
3 | Closed | Open | Open | Open | Open | Open | Open | Open | Open | Open | |
4 | Open | Closed | Open | Open | Open | Open | Open | Open | Open | Open | |
6 | Open | Open | Open | Closed | Open | Open | Open | Open | Open | Open | |
7 | Open | Open | Open | Open | Closed | Open | Open | Open | Open | Open | |
9 | Open | Open | Open | Open | Open | Closed | Open | Open | Open | Open | |
11 | Open | Open | Open | Open | Open | Open | Closed | Open | Open | Open | |
12 | Open | Open | Open | Open | Open | Open | Open | Closed | Open | Open | |
14 | Open | Open | Open | Open | Open | Open | Open | Open | Closed | Open | |
15 | Open | Open | Open | Open | Open | Open | Open | Open | Open | Closed | |
BUS SPEED | ||
Size | JP5 | |
» | 33Mhz | Closed |
50Mhz | Open | |
BOOT ROM CONFIGURATION | ||
Setting | JP2/1 | |
» | Disable | Open |
Enable | Closed | |
ROM ADDRESS | |||
Address | JP2/2 | JP2/3 | |
» | D000:0-D000:1FFF | Closed | Open |
C000:0-C000:1FFF | Open | Open | |
C800:0-C800:1FFF | Open | Closed | |
D800:0-D800:1FFF | Closed | Closed | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Power on |
LED1 | Green | Blinking | Data is being transmitted |
LED1 | Green | Off | Power off |
LED2 | Green | On | Network connection is good (UTP only) |
LED2 | Green | Blinking | Data is being received |
LED2 | Green | Off | Network connection is broken (UTP only) |
LED3 | Yellow | On | Network connection is broken (BNC only) |
LED3 | Yellow | Blinking | Collision detected |
LED3 | Yellow | Off | Normal operation |
LED4 | Yellow | On | Card is transmitting for an extended time (jabber) |
LED4 | Yellow | Off | Normal operation |
