D-LINK
DE-300 for PS/2
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit MCA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG--58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
CABLE TYPE | ||
|
Type |

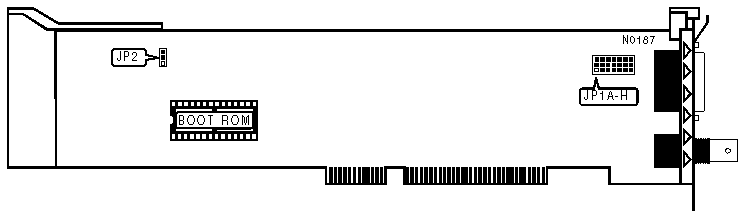

JP1/Jumpers 1-7 | |
| » |
RG-58A/U 50ohm coaxial |
Pins 2 & 3 Closed |
|
AUI transceiver via DB-15 port |
Pins 1 & 2 Closed | |
|
CONFIGURATION ID | |||
|
ID Number |
Jumper |
Position | |
| » |
OFCCh |
JP2 |
Pins 2 & 3 Closed |
|
OFCDh |
JP2 |
Pins 1 & 2 Closed | |
|
Note:The IBM configuration program will automatically know which configuration file to use. If two cards are present in the same system, (e.g.-two cards in the same server) set JP2 on each card to a different ID. | |||
|
|
|
|
 |
|
