LINKPORT PCMCIA ETHERNET CARD Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
COMPEX, INC.
LINKPORT PCMCIA ETHERNET CARD
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Unavailable |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Data Bus |
PCMCIA Type II |
|

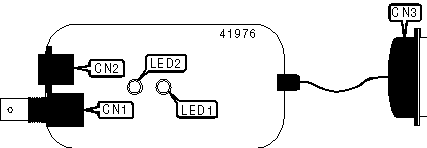

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RG-58A/U |
CN1 |
15-pin flat connector |
CN3 |
|
UTP connector |
CN2 | ||
|
DIAGNOSTIC LED(S) |
|
Note: Function of LEDs is unidentified. |
|
|
|
|
 |
|
