COMPAQ COMPUTER CORPORATION

NETELLIGENT 100 FDDI PCI DAS FIBER-SC

Card Type	Network Interface Card
NIC Type	FDDI
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	100Mbps
Topology	Ring
Wiring Type	Fiber optic cable
Data Bus	32-bit PCI

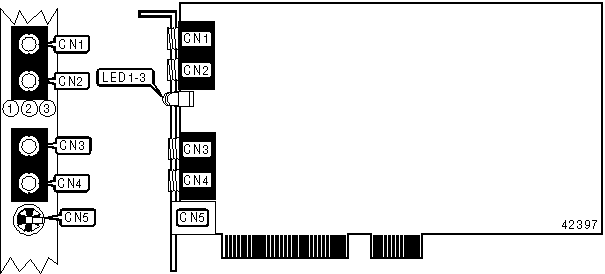

CONNECTIONS
Function	Label	Function	Label
Fiber SC connector	CN1	Fiber SC connector	CN4
Fiber SC connector	CN2	Optical bypass connector	CN5
Fiber SC connector	CN3

DIAGNOSTIC LED(S)
LED1 (Green)	LED2 (Yellow)	LED3 (Green)	Condition
Off	Off	Off	Driver not loaded
Off	On	Off	Station management code is running, controller in not connected to the network
On	Off	Off	Controller is active at port B
Off	Off	On	Controller is active at port A
On	Off	On	Controller is ready for use
