NETELIGENT 100 FDDI EISA SAS FIBER-MIC Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
COMPAQ COMPUTER CORPORATION
NETELIGENT 100 FDDI EISA SAS FIBER-MIC
|
Card Type |
Network Interface Card |
|
NIC Type |
FDDI |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
100 Mbps |
|
Topology |
Ring |
|
Wiring Type |
Fiber optic cable |
|
Data Bus |
32-EISA |
|

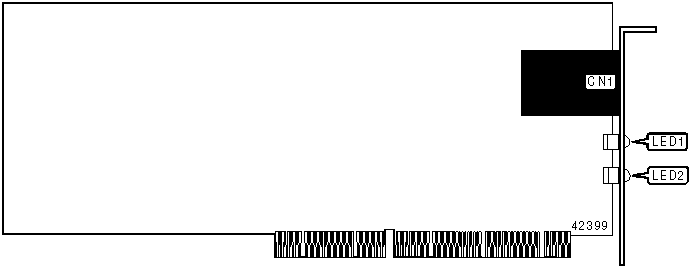

CONNECTIONS | |
|
Function |
Label |
|
Fiber optic connector - MIC |
CN1 |
|
DIAGNOSTIC LED(S) | ||
|
LED1 (Green) |
LED2 (Yellow) |
Condition |
|
Off |
Off |
Driver not loaded |
|
Off |
On |
Station management code is running, controller is not connected to the network |
|
On |
Off |
Controller is ready for use |
|
|
|
|
 |
|
