EMASTER+ EM110 T4 PCI Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
COGENT DATA TECHNOLOGIES, INC.
EMASTER+ EM110 T4 PCI
|
NIC Type |
Ethernet |
|
Transfer Rate |
10/100Mbps |
|
Data Bus |
PCI |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

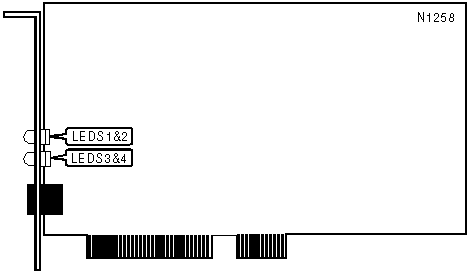

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
On |
Network activity is detected (10Mbps) |
|
LED1 |
Yellow |
Off |
Network activity is not detected (10Mbps) |
|
LED2 |
Green |
On |
Network connection is good (10Mbps) |
|
LED2 |
Green |
Off |
Network connection is broken (10Mbps) |
|
LED3 |
Yellow |
On |
Network activity is detected (100Mbps) |
|
LED3 |
Yellow |
Off |
Network activity is not detected (100Mbps) |
|
LED4 |
Green |
Blinking |
Network connection is good (100Mbps) |
|
LED4 |
Green |
Off |
Network connection is broken (100Mbps) |
|
|
|
|
 |
|
