CNET TECHNOLOGY, INC.
CN911E VER. C
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
EISA |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

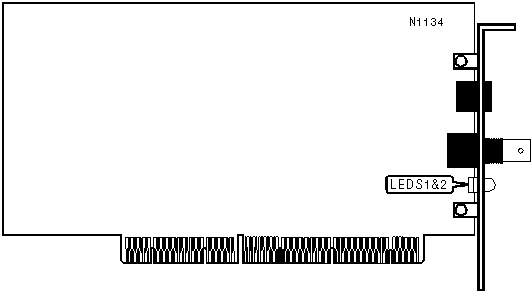

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network connection is good |
|
LED1 |
Green |
Off |
Network connection is broken |
|
LED2 |
Yellow |
On |
Data is being transmitted/received |
|
LED2 |
Yellow |
Off |
Data is not being transmitted/received |
|
|
|
|
 |
|
