EMACIIC Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / C / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
EMACIIC Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
CELAN TECHNOLOGY, INC.
EMACIIC
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
NuBus |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Shielded/Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

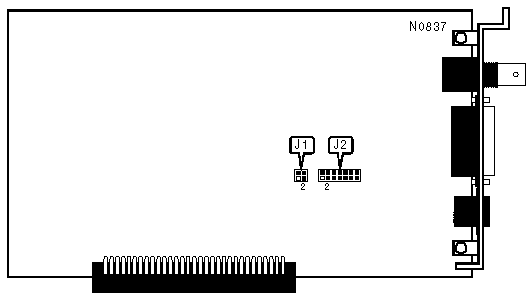

CABLE TYPE | ||
|
Type |
J1 |
J2 |
|
Unshielded twisted pair |
Pins 1 & 2 closed |
Pins 1 & 2, 3 & 4, 5 & 6 closed |
|
RG58A/U 50ohm coaxial |
Pins 3 & 4 closed |
Pins 7 & 8, 9 & 10, 11 & 12 closed |
|
AUI transceiver via DB-15 port |
Pins 3 & 4 closed |
Pins 1 & 2, 3 & 4, 5 & 6 closed |
|
|
|
|
 |
|
