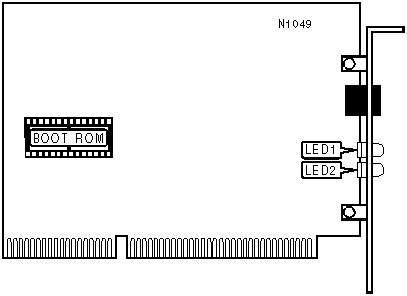

BOCALANCARD-TP (BEN110) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
BOCA RESEARCH, INC.
BOCALANCARD-TP (BEN110)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Available |
v
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network connection is good |
|
LED1 |
Green |
Off |
Network connection is broken |
|
LED2 |
Red |
On |
Normal polarity |
|
LED2 |
Red |
Off |
Reversed polarity |
|
Note: Led2 is programmable to show transmit, receive polarity, jabber, and collision. Polarity is the default. | |||
|
|
|
|
 |
|
