ASUS COMPUTER INTERNATIONAL
EISA-L500
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
32-bit EISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|

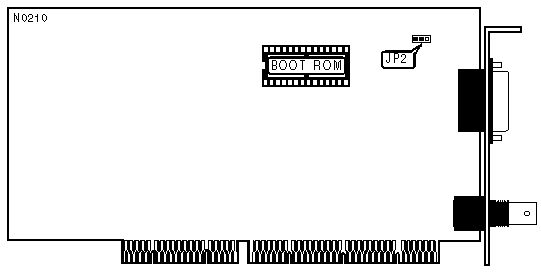

CABLE TYPE | ||
|
Type |
JP2 | |
| » |
RG-58A/U 50ohm coaxial |
Pins 1 & 2 Closed |
|
Software select |
Pins 2 & 3 Closed | |
|
Note:The software setup option requires software provided by the manufacturer. | ||
|
|
|
|
 |
|
