ETHERPAC 2000+T Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / A / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
ETHERPAC 2000+T Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ASANTE TECHNOLOGY, INC.
ETHERPAC 2000+T
|
Card Type |
Ethernet |
|
Data Bus |
8/16-bit ISA |
|
Maximum Network Rate |
10Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Available |
|

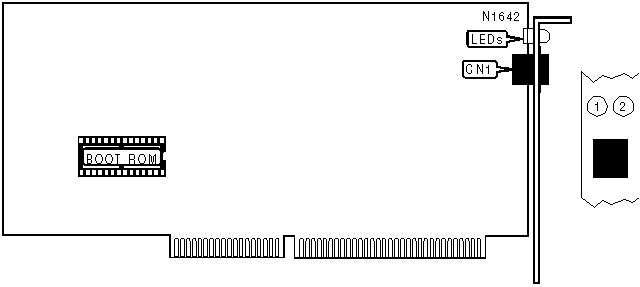

CONNECTIONS | |
|
Function |
Label |
|
Unshielded twisted pair |
CN1 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
On |
Card is transmitting or receiving |
|
LED1 |
Red |
Off |
Card is not transmitting or receiving |
|
LED2 |
Green |
On |
Network connection is good |
|
LED2 |
Green |
Off |
Network connection is broken |
|
|
|
|
 |
|
