ASANTEFAST 10/100 FOR NUBUS Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ASANTE TECHNOLOGY, INC.
ASANTEFAST 10/100 FOR NUBUS
|
Card Type |
Ethernet |
|
Data Bus |
NuBus |
|
Maximum Network Rate |
10/100Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

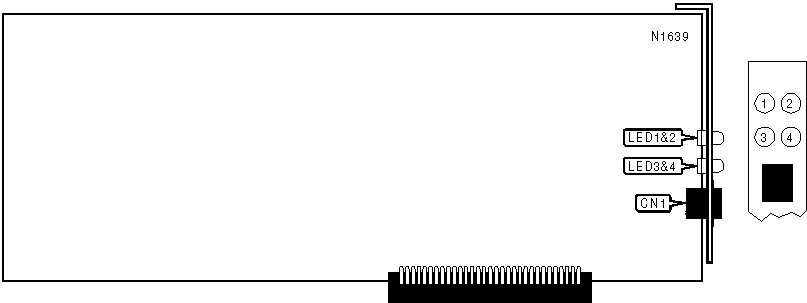

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Amber |
On |
Card is operating at 10Mbps |
|
LED1 |
Amber |
Off |
Card is not operating at 10Mbps |
|
LED2 |
Green |
On |
Card is operating at 100Mbps |
|
LED2 |
Green |
Off |
Card is not operating at 100Mbps |
|
LED3 |
Amber |
Blinking |
Card is transmitting |
|
LED3 |
Amber |
Off |
Card is not transmitting |
|
LED4 |
Green |
On |
Network connection is good |
|
LED4 |
Green |
Off |
Network connection is broken |
|
Note: When the card is powered up, LED1 will be on until device driver is loaded and network speed is detected, regardless of the network speed. | |||
|
|
|
|
 |
|
