MACCON-I NB-TN Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / A / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
MACCON-I NB-TN Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ASANTE TECHNOLOGIES, INC.
MACCON-I NB-TN
|
Card Type |
Ethernet |
|
Chip Set |
Unidentified |
|
Data Bus |
NuBus |
|
Maximum Network Rate |
10Mbps |
|
Topology |
Linear Bus |
|
Wiring Type |
AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

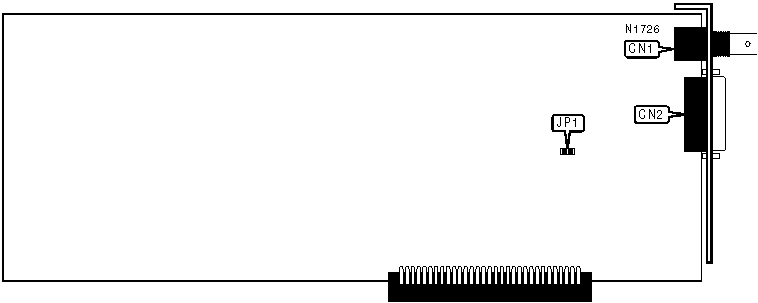

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RG-58A/U 50ohm coaxial |
CN1 |
AUI transceiver via DB-15 port |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Link integrity function enabled |
JP1 |
Open |
|
Link integrity function disabled |
JP1 |
Closed | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
Blinking |
Traffic detected on network |
|
LED1 |
Yellow |
Off |
Traffic not detected on network |
|
LED2 |
Green |
On |
Network connection is good |
|
LED2 |
Green |
Off |
Network connection is broken |
|
Note: Exact location of LEDs is unidentified. | |||
|
|
|
|
 |
|
