EN/SC 10T, EN/SC 10T PB Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ASANTE TECHNOLOGIES, INC.
EN/SC 10T, EN/SC 10T PB
|
Card Type |
Ethernet |
|
Data Bus |
SCSI |
|
Maximum Network Rate |
10Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

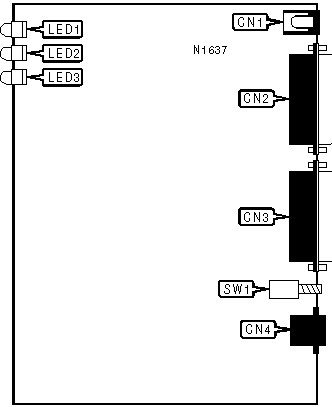

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
DC power |
CN1 |
Unshielded twisted pair |
CN4 |
|
SCSI connector |
CN2 |
SCSI ID selection |
SW1 |
|
SCSI connector |
CN3 | ||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
On |
Power is on |
|
LED1 |
Unidentified |
Off |
Power is off |
|
LED2 |
Unidentified |
On |
Traffic detected on network |
|
LED2 |
Unidentified |
Off |
Traffic not detected on network |
|
LED3 |
Unidentified |
On |
Network connection on 10Base-T port is good |
|
LED3 |
Unidentified |
Off |
Network connection on 10Base-T port is broken |
|
|
|
|
 |
|
