AT-MX400T4 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / A / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
AT-MX400T4 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ALLIED TELESYN, INC.
AT-MX400T4
|
Device Type |
Transceiver |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
10/100Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded Twisted Pair |
|
Data Bus |
External |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
40-pin MII interface |
CN1 |
UTP connector (RJ-45) |
CN2 |
|

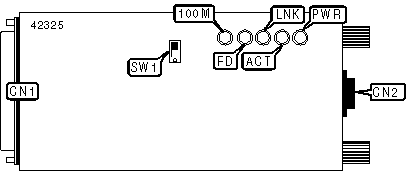

USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Physical address setting 0 selected |
SW1 |
On |
|
Physical address setting 1 selected |
SW1 |
Off |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
PWR |
Unidentified |
On |
Power is on |
|
PWR |
Unidentified |
Off |
Power is off |
|
ACT |
Unidentified |
On |
Data is being transmitted/received |
|
ACT |
Unidentified |
Off |
Data is not being transmitted/received |
|
LNK |
Unidentified |
On |
Network connection is good |
|
LNK |
Unidentified |
Off |
Network connection is broken |
|
FD |
Unidentified |
On |
100Mbps: Transciever in full duplex mode 10Mbps: UTP receive data signals are correctly connected |
|
FD |
Unidentified |
Off |
100Mbps: Transciever not in full duplex mode 10Mbps: UTP receive data signals are not correctly connected |
|
100M |
Unidentified |
On |
Transceiver is in 100Mbps mode |
|
100M |
Unidentified |
Off |
Transceiver is in 10Mbps mode |
|
|
|
|
 |
|
