AT-MX26F Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / A / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
AT-MX26F Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ALLIED TELESYN, INC.
AT-MX26F
|
Device Type |
Transceiver |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Star |
|
Wiring Type |
Fiber Optic cable - ST |
|
Data Bus |
External |
|

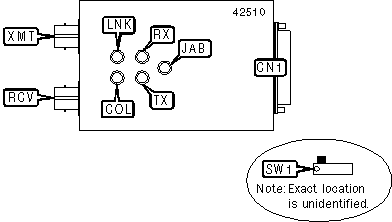

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
AUI transceiver via DB-15 |
CN1 |
Fiber optic connector (ST) - receive |
RCV |
|
Fiber optic connector (ST) - transmit |
XMT | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
SQE test function disabled |
SW1 |
Off |
|
SQE test function enabled |
SW1 |
On | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LNK |
Unidentified |
On |
Network connection is good |
|
LNK |
Unidentified |
Off |
Network connection is broken |
|
RX |
Unidentified |
On |
Data is being received |
|
RX |
Unidentified |
Off |
Data is not being received |
|
TX |
Unidentified |
On |
Data is being transmitted |
|
TX |
Unidentified |
Off |
Data is not being transmitted |
|
JAB |
Unidentified |
On |
Jabber timer has expired |
|
JAB |
Unidentified |
Off |
Jabber timer has not expired |
|
COL |
Unidentified |
On |
Collision detected on network |
|
COL |
Unidentified |
Off |
No collision detected on network |
|
|
|
|
 |
|
