ALLIED TELESYN, INC.

AT-200

Device Type	Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	External

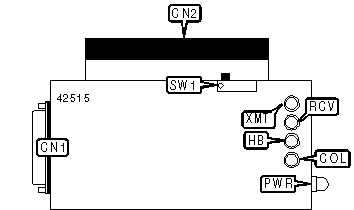

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	Non-intrusive Ethernet tap	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	SQE test function disabled	SW1	Off
	SQE test function enabled	SW1	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
XMT	Unidentified	Blinking	Data is being transmitted
XMT	Unidentified	Off	Data is not being transmitted
RCV	Unidentified	Blinking	Data is being received
RCV	Unidentified	Off	Data is not being received
HB	Unidentified	On	Signal Quality Error test function is enabled
HB	Unidentified	Off	Signal Quality Error test function is disabled
COL	Unidentified	Blinking	Collision detected on network
COL	Unidentified	Off	No collision detected on network
PWR	Amber	On	Power is on
PWR	Green	On	Power is off
