AT-2560TX Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / A / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
AT-2560TX Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ALLIED TELESYN, INC.
AT-2560TX
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10/100Mbps |
|
Topology |
Star |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair |
|
Data Bus |
32-bit PCI |
|

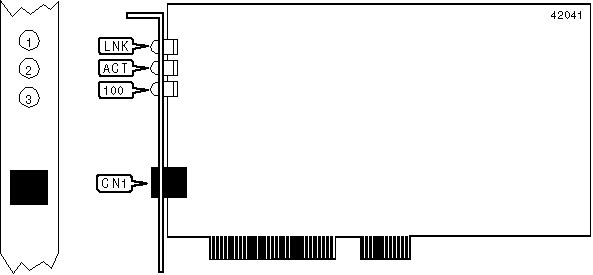

CONNECTIONS | |
|
Function |
Label |
|
RJ-45 connector |
CN1 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LNK |
Unidentified |
On |
Network connection is good |
|
LNK |
Unidentified |
Off |
Network connection is broken or diagnostics being run |
|
ACT |
Unidentified |
On |
Data is being transmitted/received |
|
ACT |
Unidentified |
Off |
Data is not being transmitted/received |
|
100 |
Unidentified |
On |
Connection is 100Mbps |
|
100 |
Unidentified |
Off |
Connection is 10Mbps |
|
|
|
|
 |
|
