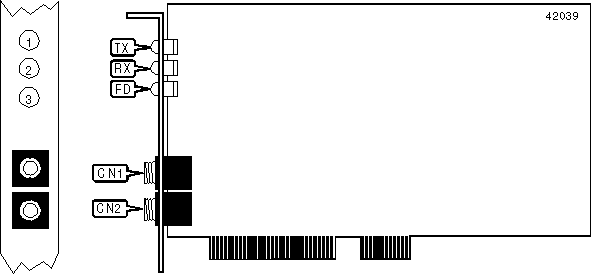

AT-2560FX SC Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / A / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
AT-2560FX SC Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ALLIED TELESYN, INC.
AT-2560FX SC
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
100Mbps |
|
Topology |
Star |
|
Wiring Type |
Fiber optic cable |
|
Data Bus |
32-bit PCI |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
SC, Fiber optic - transmit |
CN1 |
SC, Fiber optic - receive |
CN2 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
RX |
Unidentified |
On |
Data is being received |
|
RX |
Unidentified |
Off |
Data is not being received |
|
TX |
Unidentified |
On |
Data is being transmitted |
|
TX |
Unidentified |
Off |
Data is not being transmitted |
|
FD |
Unidentified |
On |
Connection is full-duplex |
|
FD |
Unidentified |
Off |
Connection is not full-duplex |
|
|
|
|
 |
|
