AT-2450BT Network Card Settings and Configuration
ALLIED TELESYN, INC.
AT-2450BT
Card Type | Network Interface Card |
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Topology | Linear Bus, Star |
Wiring Type | Shielded twisted pair Unshielded twisted pair RG-58A/U 50ohm coaxial |
Data Bus | 32-bit PCI |
CONNECTIONS | |||
Function | Label | Function | Label |

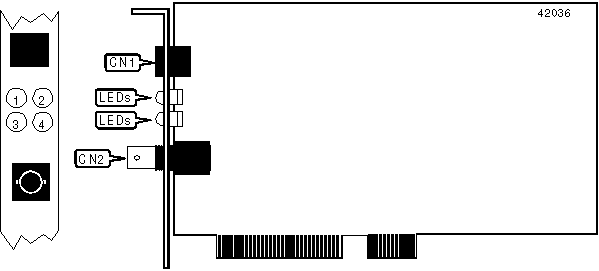

RJ-45, Twisted pair | CN1 | RG-58A/U 50 ohm coaxial | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Data is being transmitted |
LED2 | Green | Off | Data is not being transmitted |
LED2 | Yellow | On | Data is being received |
LED2 | Yellow | Off | Data is not being received |
LED3 | Green | On | Link integrity is good |
LED3 | Green | Off | Link integrity is broken |
LED4 | Yellow | On | Collision detected on network |
LED4 | Yellow | Off | No collision detected on network |
