VIRATA LINK Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / A / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
VIRATA LINK Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ADVANCED TELECOMMUNICATIONS MODULES LTD.
VIRATA LINK
|
Card Type |
ATM |
|
Maximum network Rate |
25.6Mbps |
|
Topology |
Linear Bus |
|
Data Bus |
16-bit ISA |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

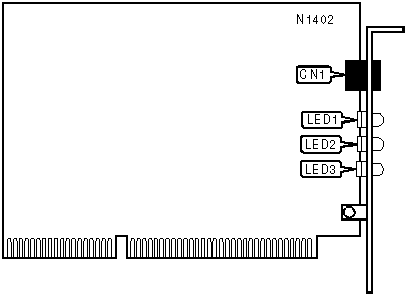

CONNECTIONS | |
|
Function |
Label |
|
10Base-T port |
CN1 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
On |
Network connection is good |
|
LED1 |
Red |
Off |
Network connection is broken |
|
LED2 |
Green |
Blinking |
Data is being received |
|
LED2 |
Green |
Off |
Data is not being received |
|
LED3 |
Yellow |
Blinking |
Data is being transmitted |
|
LED3 |
Yellow |
Off |
Data is not being transmitted |
|
|
|
|
 |
|
