ADDTRON TECHNOLOGY CO., LTD.
P/N:EP210
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Data Bus |
PCMCIA |
|

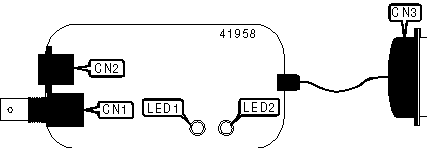

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
BNC connector |
CN1 |
15-pin flat connector |
CN3 |
|
RJ-45 connector |
CN2 | ||
|
DIAGNOSTIC LED(S) |
|
Note: Function of LEDs is unidentified. |
|
|
|
|
 |
|
