AEF-380TX-D Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / A / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
AEF-380TX-D Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ADDTRON TECHNOLOGY CO., LTD.
AEF-380TX-D
|
Card Type |
Ethernet Adapter |
|
NIC Type |
Ethernet |
|
Boot ROM |
Available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Star |
|
Wire Type |
Unshielded twisted pair RG-58 A/U 50ohm coaxial |
|
Data Bus |
32-bit PCI |
|
Card Size |
Half height, half length |
|

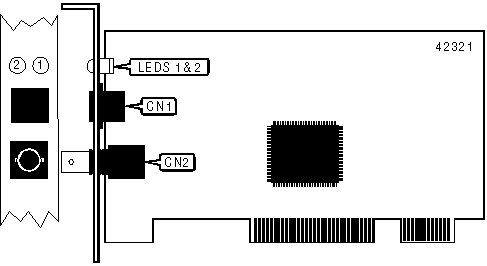

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
UTP interface (RJ-45 connector) |
CN1 |
RG-58 A/U 50ohm coaxial |
CN2 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
Blinking |
Data is being transmitted/received |
|
LED1 |
Yellow |
Off |
Data is not being transmitted/received |
|
LED2 |
Green |
On |
Network connection is good |
|
LED2 |
Green |
Off |
Network connection is broken |
|
|
|
|
 |
|
