ANA-6911A/TX Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / A / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
ANA-6911A/TX Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ADAPTEC, INC.
ANA-6911A/TX
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Boot ROM |
Available |
|
Network Transfer Rate |
200Mbps/100Mbps/20Mbps/10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair |
|
Data Bus |
32-bit PCI |
|
CONNECTIONS | |
|
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
|

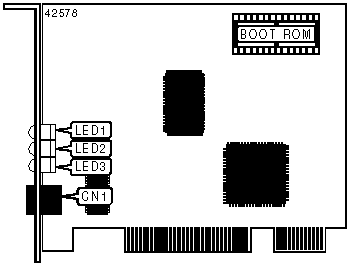

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network connection is good |
|
LED1 |
Green |
Off |
Network connection is not good |
|
LED2 |
Yellow |
Blinking |
Data is being received |
|
LED2 |
Yellow |
Off |
Data is not being received |
|
LED3 |
Unidentified |
On |
Operating at 100 Mbps |
|
LED3 |
Unidentified |
Off |
Operating at 10 Mbps |
|
|
|
|
 |
|
