ACCULAN CORPORATION
FE-1000TX
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10/100Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

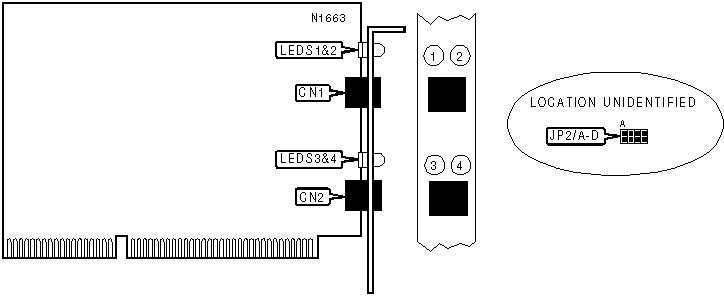

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Unshielded twisted pair (100Base-TX) |
CN1 |
Unshielded twisted pair (10Base-T) |
CN2 |
|
INTERRUPT SELECTION | ||||
|
IRQ |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
|
A |
Closed |
Open |
Open |
Open |
|
B |
Open |
Closed |
Open |
Open |
|
C |
Open |
Open |
Closed |
Open |
|
D |
Open |
Open |
Open |
Closed |
|
Note: The location of JP2 is unidentified. | ||||
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Network connection is good on 100Base-TX |
|
LED1 |
Off |
Network connection is broken on 100Base-TX |
|
LED2 |
Blinking |
Data is being transmitted/ received on 100Base-TX |
|
LED2 |
Off |
Data is not being transmitted/ received on 100Base-TX |
|
LED3 |
On |
Network connection is good on 10Base-T |
|
LED3 |
Off |
Network connection is broken on 10Base-T |
|
LED4 |
Blinking |
Data is being transmitted/ received on 10Base-T |
|
LED4 |
Off |
Data is not being transmitted/ received on 10Base-T |
|
|
|
|
 |
|
