ACCULAN CORPORATION
EN-2420PB
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|

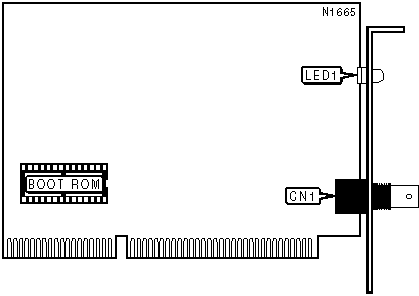

CONNECTIONS | |
|
Function |
Label |
|
RG-58A/U 50ohm coaxial port |
CN1 |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
Blinking |
Data is being transmitted/received |
|
LED1 |
Off |
Data is not being transmitted/received |
|
|
|
|
 |
|
