ETHERPAIR-16 (EN1661) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ACCTON TECHNOLOGY CORPORATION
ETHERPAIR-16 (EN1661)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Available |
|

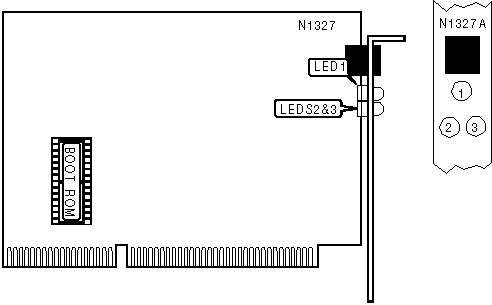

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
10Base-T network connection is good |
|
LED1 |
Green |
Off |
10Base-T network connection is broken |
|
LED2 |
Green |
Blinking |
Data is being transmitted |
|
LED2 |
Green |
Off |
Data is not being transmitted |
|
LED3 |
Green |
Blinking |
Data is being received |
|
LED3 |
Green |
Off |
Data is not being received |
|
|
|
|
 |
|
