ETHERCOMBO-PCI (EN1208) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ACCTON TECHNOLOGY CORPORATION
ETHERCOMBO-PCI (EN1208)
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
32-bit PCI |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available (location unidentified) |
|

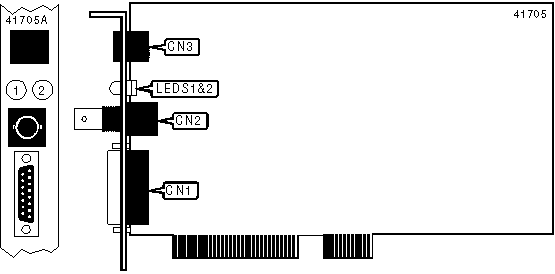

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
AUI transceiver via DB-15 port |
CN1 |
Shielded/Unshielded twisted pair port |
CN3 |
|
RG-58A/U 50ohm coaxial port |
CN2 | ||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
10Base-T network connection is good |
|
LED1 |
Green |
Off |
10Base-T network connection is broken |
|
LED2 |
Green |
On |
Data is being transmitted/received |
|
LED2 |
Green |
Off |
Data is not being transmitted/received |
|
|
|
|
 |
|
