ETHERCOMBO-16 (EN1640) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ACCTON TECHNOLOGY CORPORATION

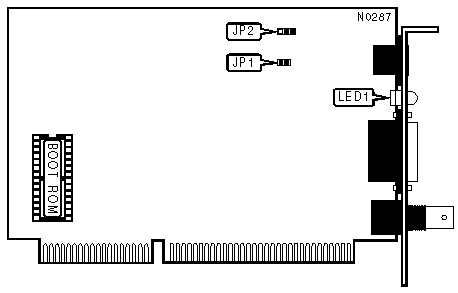

ETHERCOMBO-16 (EN1640)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star Linear Bus |
|
Wiring Type |
Unshielded twisted pair RG58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
INITIAL STATE CONFIGURATION | |||
|
Mode |
JP1 | ||
| » |
Initial state disabled 1 |
Open | |
|
Initial state enabled 2 |
Closed | ||
|
Note 1 Adapter uses default configuration settings, or user selected settings through software.2 Adapter is forced into an INITIAL STATE, where adapter mode is NE1000, I/O address is 280h, IRQ is | |||
|
CABLE TYPE | |
|
Type |
JP2 |
|
RG-58A/U 50ohm coaxial |
Pins 1 & 2 Closed |
|
AUI transceiver via DB-15 port |
Pins 2 & 3 Closed |
|
Note:Twisted pair wire is selected through the configuration software that comes with the card. | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Twisted pair network connection is good |
|
LED1 |
Green |
Off |
Twisted pair network connection is broken |
|
Note:LED1 indications are only valid when the cable type is twisted pair wire. | |||
|
|
|
|
 |
|
