ETHERCOAX-NE2 ACC-10 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ACCTON TECHNOLOGY CORPORATION
ETHERCOAX-NE2 ACC-10
(EN1623)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
32-bit MCA |
|
Topology |
Linear bus |
|
Wiring Type |
RG58A/U 50ohm coaxial AUI transceiver via DB15 |
|
Boot ROM |
Available |
|
CABLE TYPE | ||
|
Type |

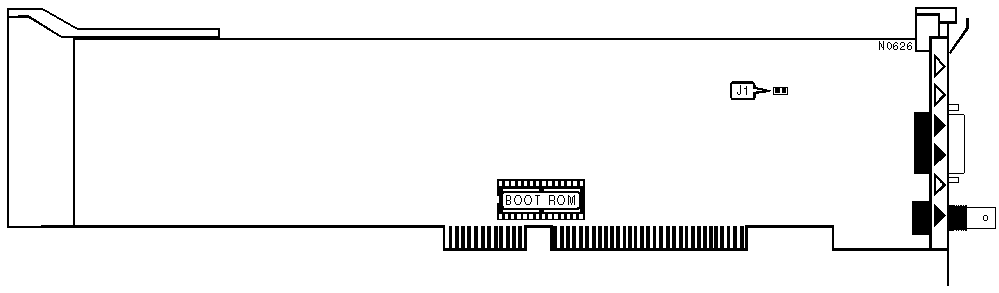

J1 | |
| » |
RG58A/U 50ohm coaxial |
Closed |
|
AUI transceiver via DB-15 port |
Open | |
|
|
|
|
 |
|
