ETHERCOAX-16 (EN1642) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ACCTON TECHNOLOGY CORPORATION
ETHERCOAX-16 (EN1642)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8/16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
|
|
|

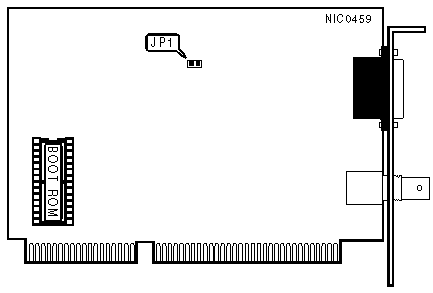

CARD CONFIGURATION |
|||||||
|
Mode |
I/O Address |
IRQ |
Cable Type |
Boot ROM |
Standard |
JP1 |
|
|
» |
Software |
Software |
Software |
Software |
Software |
Software |
Open |
|
|
NE1000 |
280h |
Disabled |
AUI transceiver |
Disabled |
IEEE 802.3 |
Closed |
|
Note: The card is normally configured using the included software utility. The second configuration is provided to allow easier troubleshooting if the system will not boot or locks-up. |
|||||||
|
|
|
|
 |
|
