ETHERCOAX-98X (EN1668C) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ACCTON TCHNOLOGY CORPORATION
ETHERCOAX-98X (EN1668C)
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
16KB |
|
Boot ROM |
Unidentified |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial |
|
Data Bus |
16-bit ISA |
|

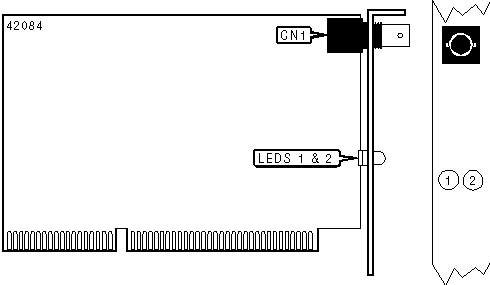

CONNECTIONS | |
|
Function |
Label |
|
RG-58A/U connector |
CN1 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Data is being transmitted |
|
LED1 |
Green |
Blinking |
Light or intermittent network transmission |
|
LED1 |
Green |
Off |
Data is not being transmitted |
|
LED2 |
Green |
On |
Data is being received |
|
LED2 |
Green |
Blinking |
Light or intermittent network reception |
|
LED2 |
Green |
Off |
Data is not being received |
|
|
|
|
 |
|
