WYSE DECISION 386SX/16S Motherboard Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
WYSE TECHNOLOGY, INC.
WYSE DECISION 386SX/16S
|
Processor |
80386SX |
|
Processor Speed |
16MHz |
|
Chip Set |
WYSE |
|
Max. Onboard DRAM |
8MB |
|
Cache |
None |
|
BIOS |
WYSE |
|
Dimensions |
370mm x 303mm |
|
I/O Options |
Parallel port, serial port, floppy drive interface, IDE interface, VGA port, PS/2 mouse interface, proprietary riser card connector |
|
NPU Options |
80387SX |
|

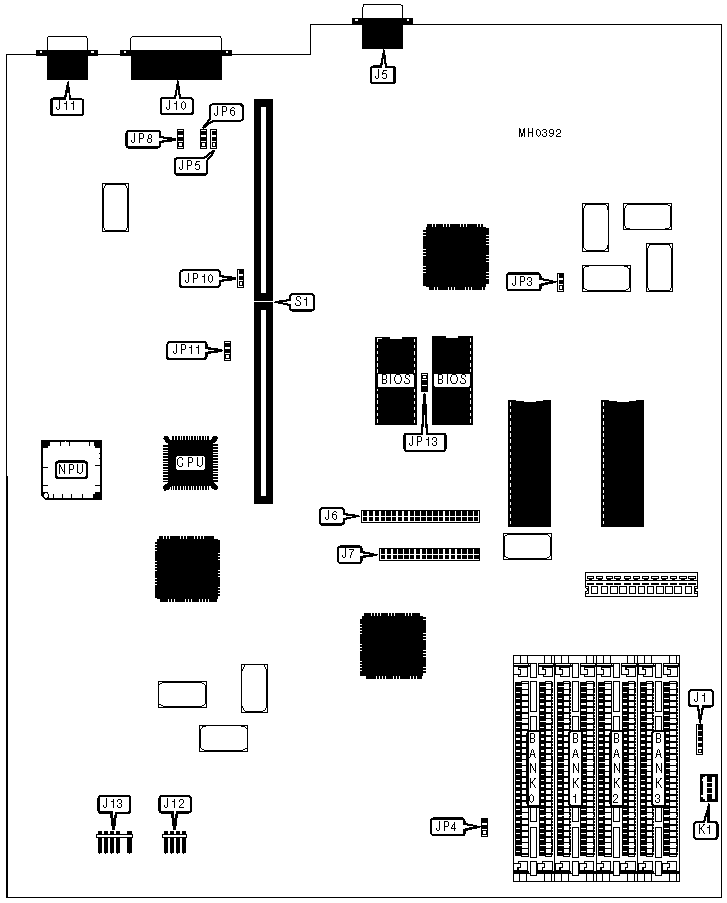

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
PS/2 mouse port connector |
J1 |
Serial port |
J11 |
|
VGA port |
J5 |
External battery |
J12 |
|
IDE interface |
J6 |
Power LED/Reset switch |
J13 |
|
Floppy drive interface |
J7 |
Keyboard port connector |
K1 |
|
Parallel port |
J10 |
Proprietary riser card connector |
S1 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Jumper |
Position |
|
|
» |
IRQ2 disabled |
JP3 |
pins 2 & 3 closed |
|
|
IRQ2 enabled |
JP3 |
pins 1 & 2 closed |
|
» |
Floppy drive interface enabled |
JP4 |
pins 1 & 2 closed |
|
|
Floppy drive interface disabled |
JP4 |
pins 2 & 3 closed |
|
» |
Mouse type select PS/2 |
JP5 |
pins 2 & 3 closed |
|
|
Mouse type select serial |
JP5 |
pins 1 & 2 closed |
|
» |
VGA port (J5) enabled |
JP6 |
pins 2 & 3 closed |
|
|
VGA port (J5) disabled |
JP6 |
pins 1 & 2 closed |
|
» |
Monitor type select color |
JP8 |
pins 1 & 2 closed |
|
|
Monitor type select monochrome |
JP8 |
pins 2 & 3 closed |
|
» |
Parallel port (J10) interrupt select IRQ7 |
JP10 |
pins 2 & 3 closed |
|
|
Parallel port (J10) interrupt select IRQ5 |
JP10 |
pins 1 & 2 closed |
|
» |
Serial port (J11) interrupt select IRQ4 |
JP11 |
pins 2 & 3 closed |
|
|
Serial port (J11) interrupt select IRQ3 |
JP11 |
pins 1 & 2 closed |
|
» |
VGA clock source select internal (36MHz) |
JP13 |
pins 2 & 3 closed |
|
|
VGA clock source select external |
JP13 |
pins 1 & 2 closed |
|
DRAM CONFIGURATION |
||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(2) 256K x 9 |
(2) 256K x 9 |
NONE |
NONE |
|
2MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
|
4MB |
(2) 1MBx 9 |
(2) 1MBx 9 |
NONE |
NONE |
|
5MB |
(2) 1MBx 9 |
(2) 1MBx 9 |
(2) 256K x 9 |
(2) 256K x 9 |
|
8MB |
(2) 1MBx 9 |
(2) 1MBx 9 |
(2) 1MBx 9 |
(2) 1MBx 9 |
