WYSE TECHNOLOGY, INC.

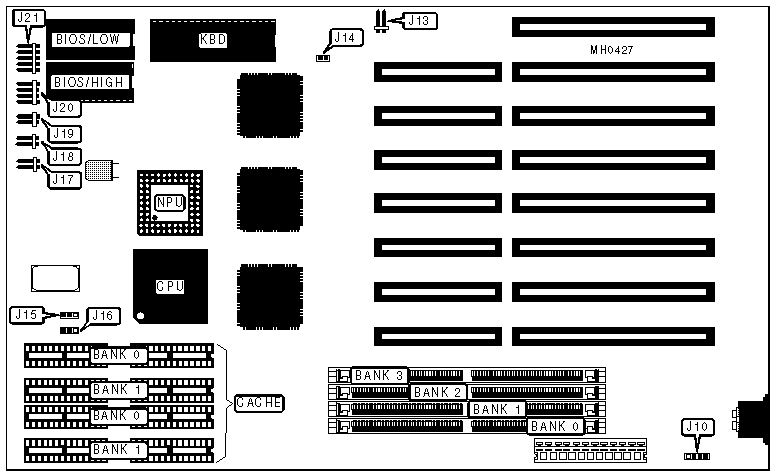

WYSE DECISION 386/40

Processor	80386DX
Processor Speed	16/20MHz
Chip Set	WYSE
Max. Onboard DRAM	16MB
Cache	128/256KB
BIOS	WYSE
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80387

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J10	Turbo LED	J19
Reset switch	J17	Speaker	J20
Turbo switch	J18	Power LED & keylock	J21

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory test disabled	J13	Open
	Factory test enabled	J13	Closed
»	Monitor type select color	J14	Closed
	Monitor type select monochrome	J14	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
4MB	(1) 1M x 36	NONE	NONE	NONE
5MB	(1) 256K x 36	(1) 1M x 36	NONE	NONE
6MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	NONE
8MB	(1) 1M x 36	(1) 1M x 36	NONE	NONE
12MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	NONE
16MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36

CACHE CONFIGURATION
Size	Bank 0	Bank 1
128KB	(4) 32K x 8	NONE
256KB	(4) 32K x 8	(4) 32K x 8

CACHE JUMPER CONFIGURATION
Size	J15	J16
128KB	pins 2 & 3 closed	pins 1 & 2 closed
256KB	pins 1 & 2 closed	pins 2 & 3 closed
