486 MODEL 402 Motherboard Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
SIEMENS NIXDORF INFORMATIONSSYSTEME AG
486 MODEL 402
|
Processor |
80486DX |
|
Processor Speed |
25MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
None (4/8/16MB on 32-bit external memory cards) |
|
Cache |
None |
|
BIOS |
Phoenix |
|
Dimensions |
355.6mm x 304mm |
|
I/O Options |
Floppy drive interface, parallel port, mouse port, serial ports (2), 32-bit external memory card slots (4) |
|
NPU Options |
None |
|

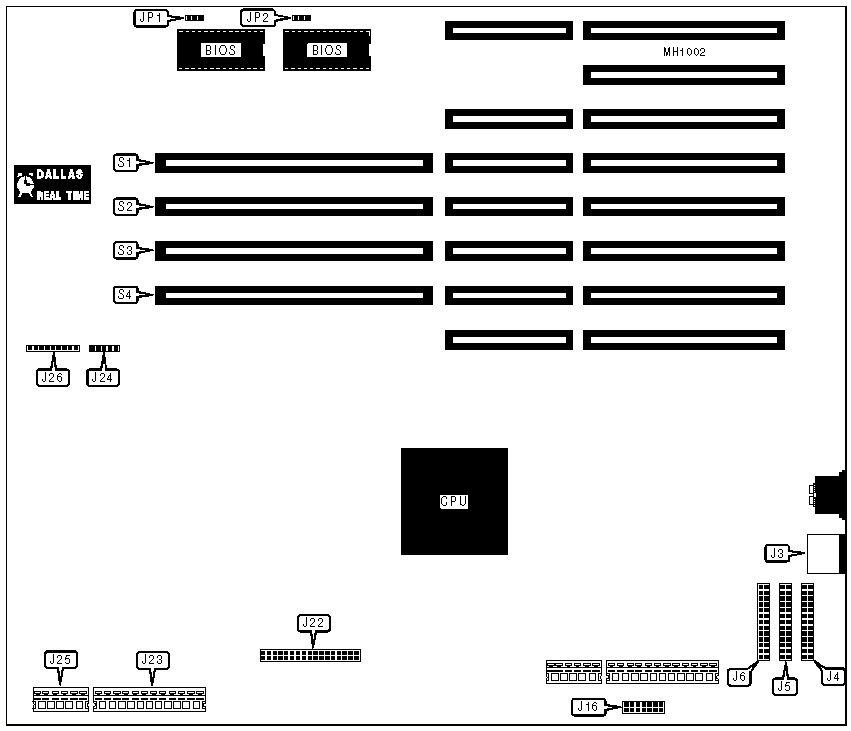

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Mouse port |
J3 |
Floppy connecter |
J22 |
|
Parallel port |
J4 |
Auxillary power connecter |
J23 & J25 |
|
Serial port 1 |
J5 |
Auxillary front panel connecter |
J24 & J26 |
|
Serial port 2 |
J6 |
32-bit external memory cards |
S1 - S4 |
|
Front panel connecter |
J16 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Password enabled |
JP1 |
pins 2 & 3 closed |
|
Password disabled |
JP1 |
pins 1 & 2 closed | |
| » |
BIOS type select 27256 |
JP2 |
pins 1 & 2 closed |
|
BIOS type select 27512 |
JP2 |
pins 2 & 3 closed | |
