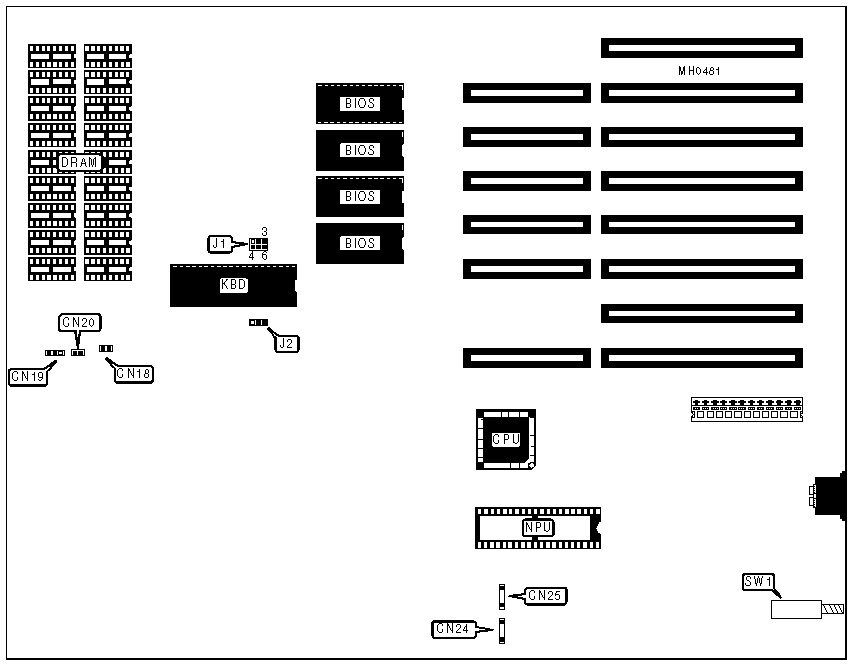

MBC-990/MBC-995 Motherboard Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
SANYO BUSINESS SYSTEMS CORPORATION
MBC-990/MBC-995
|
Processor |
80286 |
|
Processor Speed |
8MHz |
|
Chip Set |
None |
|
Max. Onboard DRAM |
512KB |
|
Cache |
None |
|
BIOS |
Sanyo |
|
Dimensions |
355mm x 304mm |
|
I/O Options |
None |
|
NPU Options |
80287 |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo LED |
CN18 |
External battery |
CN24 & CN25 |
|
Power LED |
CN19 |
Turbo switch |
SW1 |
|
Speaker |
CN20 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
BIOS type select 27128 |
J1 |
1 & 4 closed |
|
BIOS type select 27256 |
J1 |
pins 2 & 5, 3 & 6 closed | |
|
Display board installed select RGB (SAT-110) |
J2 |
pins 1 & 2 closed | |
|
Display board installed select Monochrome (SAT-140) |
J2 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | |
|
Size |
Bank 0 |
|
512KB |
(18) 41256 |
