Turbo Wugo Motherboard Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Motherboards / Motherboards / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
Turbo Wugo Motherboard Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DELL COMPUTER CORPORATION
Turbo Wugo
|
Processor |
8088 |
|
Processor Speed |
4.77/6MHz |
|
Chip Set |
None |
|
Max. Onboard DRAM |
640KB |
|
Cache |
None |
|
BIOS |
Phoenix |
|
Dimensions |
334mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
8087 |
|

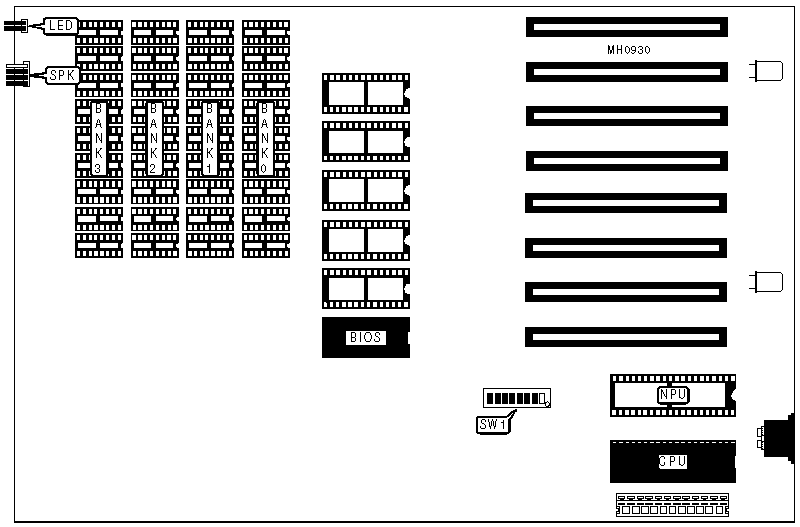

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Speaker |
SPK |
Turbo LED |
LED |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Switch |
Position | |
| » |
Factory configured - do not alter |
SW1/1 |
Off |
| » |
NPU disabled |
SW1/2 |
On |
|
NPU enabled |
SW1/2 |
Off | |
| » |
Factory configured - do not alter |
SW1/3 |
Off |
| » |
Factory configured - do not alter |
SW1/4 |
Off |
|
DRAM CONFIGURATION |
|
Note:Board is factory intalled with 640KB of DRAM and is not configurable. |
|
FLOPPY DRIVE CONFIGURATION | ||
|
Drives installed |
SW1/7 |
SW1/8 |
|
1 |
On |
On |
|
2 |
Off |
On |
|
3 |
On |
Off |
|
4 |
Off |
Off |
|
MONITOR CONFIGURATION | ||
|
Function |
SW1/5 |
SW1/6 |
|
EGA |
On |
On |
|
CGA |
On |
Off |
|
MDA |
Off |
Off |
