M6TFX Motherboard Settings and Configuration







BIOSTAR MICROTECH INTERNATIONAL CORPORATION

M6TFX

Device Type

Mainboard

Processor

Pentium II

Processor Speed

200/233/266/300MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

192MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB (located on Pentium II CPU)

BIOS

AMI

Dimensions

305mm x 244mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector

NPU Options

None

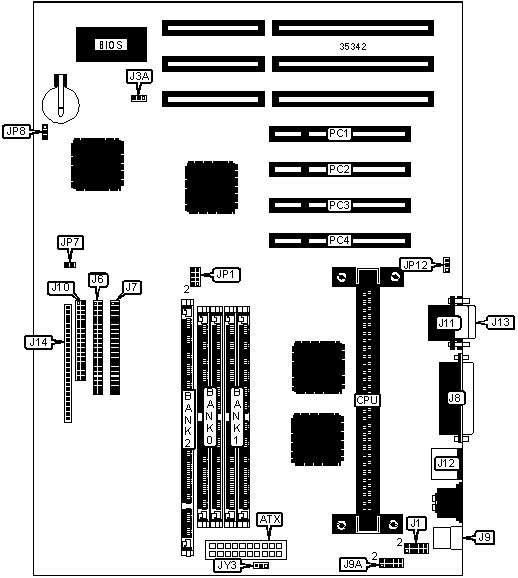

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Serial port 1

J13

Wake on LAN connector

J3A

Speaker

J14/pins 1 - 4

IDE interface 1

J6

Reset switch

J14/pins 5 & 6

IDE interface 2

J7

Power LED

J14/pins 8 - 10

Parallel port

J8

IDE interface LED

J14/pins 12 - 15

USB connector

J9

IR connector

J14/pins 17 - 21

USB connector

J9A

Green PC connector

J14/pins 23 & 24

Floppy drive interface

J10

Soft off power supply

J14/pins 25 & 26

Serial port 2

J11

CPU fan power

JY3

PS/2 mouse port

J12

32-bit PCI slots

PC1 - PC4

USER CONFIGURABLE SETTINGS

Function

Label

Position

Factory configured - do not alter

JP7

Unidentified

CMOS memory normal operation

JP8

Pins 1 & 2 closed



CMOS memory clear

JP8

Pins 2 & 3 closed



On board battery disabled

JP8

Open



External modem COM select COM1

JP12

Pins 1 & 2 closed



External modem COM select COM2

JP12

Pins 2 & 3 closed

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

Note: Board accepts EDO memory.

DIMM CONFIGURATION

Size

Bank 2

8MB

(1) 1M x 64

16MB

(1) 2M x 64

32MB

(1) 4M x 64

64MB

(1) 8M x 64

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

JP1/

pins 1 & 2

JP1/

pins 3 & 4

JP1/

pins 5 & 6

JP1/

pins 7 & 8

200MHz

66MHz

3x

Open

Closed

Open

Closed

233MHz

66MHz

3.5x

Open

Open

Open

Closed

266MHz

66MHz

4x

Open

Closed

Closed

Open

300MHz

66MHz

4.5x

Open

Open

Closed

Open

CPU VOLTAGE SELECTION

Voltage

J1/pins 1 & 2

J1/pins 3 & 4

J1/pins 5 & 6

J1/pins 7 & 8

J1/pins 9 & 10

Auto detect

Open

Open

Open

Open

Open

2.1

Open

Open

Open

Open

Closed

2.2

Open

Open

Open

Closed

Open

2.3

Open

Open

Open

Closed

Closed

2.4

Open

Open

Closed

Open

Open

2.5

Open

Open

Closed

Open

Closed

2.6

Open

Open

Closed

Closed

Open

2.7

Open

Open

Closed

Closed

Closed

2.8

Open

Closed

Open

Open

Open

2.9

Open

Closed

Open

Open

Closed

3.0

Open

Closed

Open

Closed

Open

3.1

Open

Closed

Open

Closed

Closed

3.2

Open

Closed

Closed

Open

Open

3.3

Open

Closed

Closed

Open

Closed

3.4

Open

Closed

Closed

Closed

Open

3.5

Open

Closed

Closed

Closed

Closed
