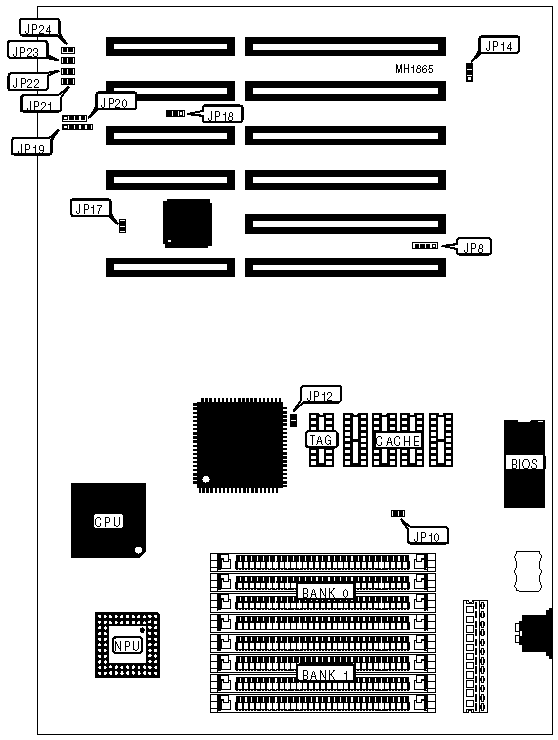

1333UCG/1340UCG/1333UCQ/1340UCQ Motherboard Settings and Configuration

Processor	80386DX/CX486DLC
Processor Speed	33/40MHz
Chip Set	Biostar
Max. Onboard DRAM	32MB
Cache	32/128KB
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80387DX/CX87DLC

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	JP19	Reset switch	JP22
Speaker	JP20	Turbo switch	JP23
Turbo LED	JP21	5 volt ground	JP24

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation (Internal Battery)	JP8	pins 2 & 3 closed
	CMOS memory normal operation (External Battery)	JP8	pins 1 & 4 closed
	CMOS memory clear	JP8	pins 3 & 4 closed
»	Monitor type select color	JP14	pins 2 & 3 closed
	Monitor type select monochrome	JP14	pins 1 & 4 closed
»	CPU speed select 66Mhz	JP17	Closed
	CPU speed select 80Mhz	JP17	Open
»	NPU enabled	JP18	pins 1 & 4 closed
	NPU disabled	JP18	pins 2 & 3 closed

CACHE CONFIGURATION
Size	Bank 0	Tag
32KB	(4) 8K x 8	(1) 8K x 8
128KB	(4) 32K x 8	(1) 8K x 8

CACHE CONFIGURATION
Size	JP10	JP12
32KB	Open	Open
128KB	Closed	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 1M x 9	(4) 256K x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
17MB	(4) 4M x 9	(4) 256K x 9
20MB	(4) 4M x 9	(4) 1M x 9
32MB	(4) 4M x 9	(4) 4M x 9
