MODEL 6286 WGS (FM-0589-03) Motherboard Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
AT & T
MODEL 6286 WGS (FM-0589-03)
|
Processor |
80286 |
|
Processor Speed |
12MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
2MB |
|
Maximum Video Memory |
None |
|
Cache |
None |
|
BIOS |
Unidentified |
|
Dimensions |
Unidentified |
|
I/O Options |
Parallel port |
|
NPU Options |
80287 |
|

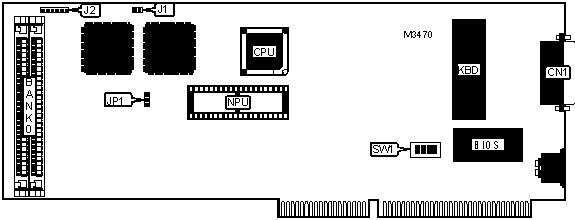

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port |
CN1 |
Alternate console connector |
J2 |
|
External battery |
J1 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
SW1/1 |
Off |
|
» |
Factory configured - do not alter |
SW1/2 |
Off |
|
VDC 400 used |
SW1/3 |
Off | |
|
VDC 600 or 750 used |
SW1/3 |
On | |
|
» |
Factory configured - do not alter |
SW1/4 |
Off |
|
DRAM CONFIGURATION | |
|
Size |
Bank 0 |
|
1MB |
(2) 512K x 9 |
|
2MB |
(2) 1M x 9 |
|
DRAM JUMPER CONFIGURATION | |
|
Size |
JP1 |
|
1MB |
Pins 1 & 2 closed |
|
2MB |
Pins 2 & 3 closed |
