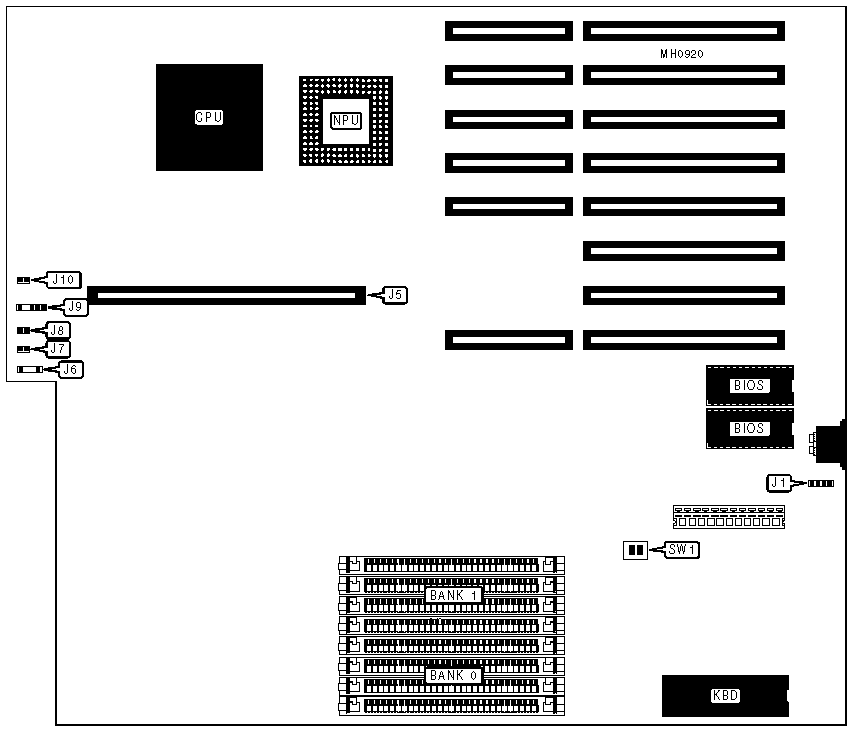

486 VOYAGER Motherboard Settings and Configuration






AMERICAN MEGATRENDS, INC.

486 VOYAGER

Processor

80486DX

Processor Speed

25/33MHz

Chip Set

AMI

Max. Onboard DRAM

32MB

Cache

128KB

BIOS

AMI

Dimensions

355mm x 304mm

I/O Options

32-bit external memory card slot

NPU Options

4167

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J1

Reset switch

J8

32-bit external memory card

J5

Power LED & keylock

J9

Speaker

J6

Turbo LED

J10

Turbo switch

J7



USER CONFIGURABLE SETTINGS

Function

Switch

Position

Factory configured - do not alter

SW1/1

Off

Monitor type select monochrome

SW1/2

Off



Monitor type select color

SW1/2

On



Note : Cache is factory installed and is not configurable. The size and location of cache & tag is unidentified.

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

8MB

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

32MB

(4) 4M x 9

(4) 4M x 9
