ADVANCED LOGIC RESEARCH, INC.
PC/2 286 M/B
|
Processor |
80286 |
|
Processor Speed |
8MHz |
|
Chip Set |
C & T |
|
Max. Onboard DRAM |
1MB |
|
Cache |
None |
|
BIOS |
Phoenix |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Floppy drive interface, serial port |
|
NPU Options |
80287 |
|

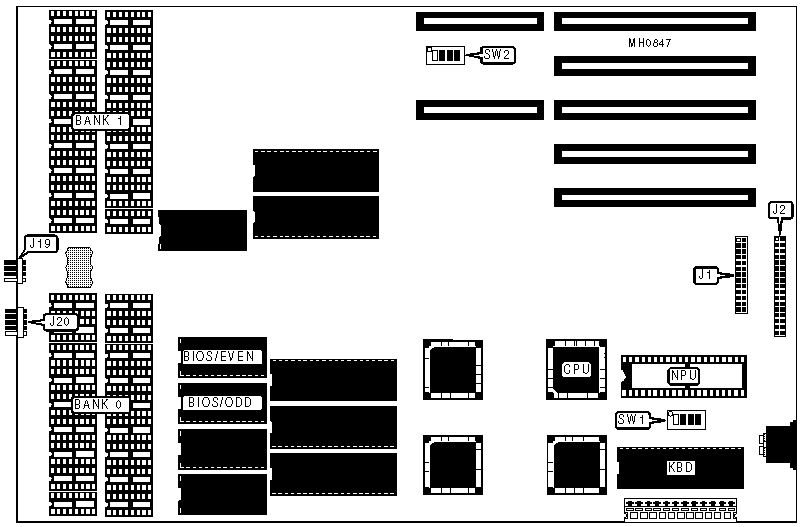

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port |
J1 |
Speaker |
J19 |
|
Floppy drive port |
J2 |
Power LED & keylock |
J20 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Switch |
Position | |
| » |
Monitor type select monochrome |
SW1/3 |
Off |
|
Monitor type select color |
SW1/3 |
On | |
| » |
Floppy drive interface enabled |
SW1/4 |
Off |
|
Floppy drive interface disabled (expansion card installed) |
SW1/4 |
On | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
512KB |
(18) 41256 |
NONE |
|
1MB |
(18) 41256 |
(18) 41256 |
|
DRAM SWITCH CONFIGURATION | ||
|
Size |
SW1/1 |
SW1/2 |
|
512KB |
On |
Off |
|
1MB |
Off |
Off |
|
SERIAL PORT CONFIGURATION | ||||
|
Setting |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
COM1 (IRQ4) |
On |
Off |
Off |
Off |
|
COM2 (IRQ3) |
Off |
On |
Off |
On |
|
Disabled |
Off |
Off |
On |
N/A |
