486ES EISA Motherboard Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Motherboards / A / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
486ES EISA Motherboard Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ADVANCED INTEGRATION RESEARCH, INC.
486ES EISA
|
Processor |
80486DX |
|
Processor Speed |
25/33/50MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
32MB |
|
Cache |
128KB |
|
BIOS |
AMI/Phoenix |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit external memory card slot |
|
NPU Options |
4167 |
|

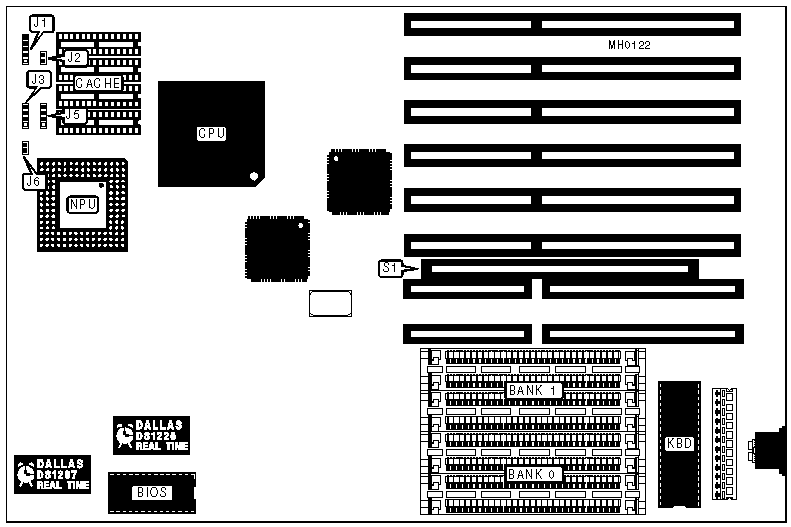

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
J1 |
Speaker |
J5 |
|
Reset switch |
J2 |
Turbo switch |
J6 |
|
Turbo LED |
J3 pins 1 & 2 |
32-bit external memory card |
S1 |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
17MB |
(4) 4M x 9 |
(4) 256K x 9 |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
128KB |
(4) 32K x 8 |
486ES EISA, motherboard, processor, socket, pentium, pentium pro, celeron, powerpc, alpha, 8088, 8086, 286, 386, 486, configuration, RAM, DRAM, floppy, jumper, connections
|
|
|
|
 |
|
