ACHME COMPUTER, INC.
MS-5117
Processor | Pentium |
Processor Speed | 75/90/100/120/133MHz |
Chip Set | VIA |
Max. Onboard DRAM | 512MB |
Cache | 256/512/1024KB |
BIOS | AMI/Award |
Dimensions | 280mm x 220mm |
I/O Options | Parallel port, serial ports (2), floppy drive interface, IDE interfaces, 32-bit PCI slots(3) |
NPU Options | None |

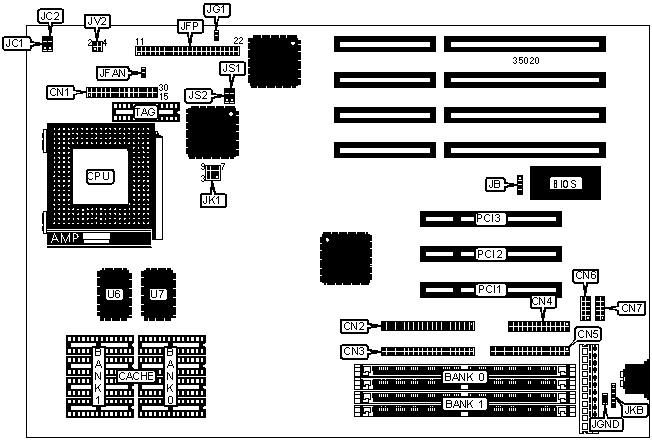

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Voltage Regulator Module | CN1 | Power LED & keylock | JFP pins 1 - 5 |
IDE interface (secondary) | CN2 | Speaker | JFP pins 7 & 10 |
IDE interface (primary) | CN3 | Turbo LED | JFP pins 12 & 13 |
Parallel port | CN4 | Turbo switch | JFP pins 15 - 17 |
Floppy drive interface | CN5 | Reset switch | JFP pins 19 & 20 |
Serial port 1 | CN6 | IDE interface LED | JFP pins 21 & 22 |
Serial port 2 | CN7 | PS/2 mouse port | JKB |
External battery | JB | 32-bit PCI slots | PCI1 - PCI3 |
Chassis fan power | JFAN |
USER CONFIGURABLE SETTINGS | |||
Function | Jumper | Position | |
» | Factory configured - do not alter | JG1 | N/A |
» | Ground type select keyboard | JGND | Closed |
Ground type select case | JGND | Open |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
2MB | (2) 256K x 36 | NONE |
2MB | NONE | (2) 256K x 36 |
4MB | (2) 512K x 36 | NONE |
4MB | NONE | (2) 512K x 36 |
4MB | (2) 256K x 36 | (2) 256K x 36 |
6MB | (2) 256K x 36 | (2) 512K x 36 |
6MB | (2) 512K x 36 | (2) 256K x 36 |
8MB | (2) 1M x 36 | NONE |
8MB | NONE | (2) 1M x 36 |
8MB | (2) 512K x 36 | (2) 512K x 36 |
10MB | (2) 256K x 36 | (2) 1M x 36 |
10MB | (2) 1M x 36 | (2) 256K x 36 |
12MB | (2) 1M x 36 | (2) 512K x 36 |
12MB | (2) 512K x 36 | (2) 1M x 36 |
16MB | (2) 2M x 36 | NONE |
16MB | NONE | (2) 2M x 36 |
16MB | (2) 1M x 36 | (2) 1M x 36 |
18MB | (2) 256K x 36 | (2) 2M x 36 |
18MB | (2) 2M x 36 | (2) 256K x 36 |
20MB | (2) 512K x 36 | (2) 2M x 36 |
20MB | (2) 2M x 36 | (2) 512K x 36 |
24MB | (2) 1M x 36 | (2) 2M x 36 |
24MB | (2) 2M x 36 | (2) 1M x 36 |
32MB | (2) 4M x 36 | NONE |
32MB | NONE | (2) 4M x 36 |
32MB | (2) 2M x 36 | (2) 2M x 36 |
34MB | (2) 256K x 36 | (2) 4M x 36 |
34MB | (2) 4M x 36 | (2) 256K x 36 |
36MB | (2) 4M x 36 | (2) 512K x 36 |
36MB | (2) 512K x 36 | (2) 4M x 36 |
40MB | (2) 1M x 36 | (2) 4M x 36 |
40MB | (2) 4M x 36 | (2) 1M x 36 |
48MB | (2) 4M x 36 | (2) 2M x 36 |
48MB | (2) 2M x 36 | (2) 4M x 36 |
64MB | (2) 8M x 36 | NONE |
64MB | NONE | (2) 8M x 36 |
64MB | (2) 4M x 36 | (2) 4M x 36 |
DRAM CONFIGURATION (CON’T) | ||
Size | Bank 0 | Bank 1 |
66MB | (2) 256K x 36 | (2) 8M x 36 |
66MB | (2) 8M x 36 | (2) 256K x 36 |
68MB | (2) 512K x 36 | (2) 8M x 36 |
68MB | (2) 8M x 36 | (2) 512K x 36 |
72MB | (2) 1M x 36 | (2) 8M x 36 |
72MB | (2) 8M x 36 | (2) 1M x 36 |
80MB | (2) 2M x 36 | (2) 8M x 36 |
80MB | (2) 8M x 36 | (2) 2M x 36 |
96MB | (2) 4M x 36 | (2) 8M x 36 |
96MB | (2) 8M x 36 | (2) 4M x 36 |
128MB | (2) 16M x 36 | NONE |
128MB | NONE | (2) 16M x 36 |
128MB | (2) 8M x 36 | (2) 8M x 36 |
130MB | (2) 256K x 36 | (2) 16M x 36 |
130MB | (2) 16M x 36 | (2) 256K x 36 |
132MB | (2) 512K x 36 | (2) 16M x 36 |
132MB | (2) 16M x 36 | (2) 512K x 36 |
136MB | (2) 1M x 36 | (2) 16M x 36 |
136MB | (2) 16M x 36 | (2) 1M x 36 |
144MB | (2) 2M x 36 | (2) 16M x 36 |
144MB | (2) 16M x 36 | (2) 2M x 36 |
160MB | (2) 4M x 36 | (2) 16M x 36 |
160MB | (2) 16M x 36 | (2) 4M x 36 |
192MB | (2) 8M x 36 | (2) 16M x 36 |
192MB | (2) 16M x 36 | (2) 8M x 36 |
256MB | (2) 32M x 36 | NONE |
256MB | NONE | (2) 32M x 36 |
256MB | (2) 16M x 36 | (2) 16M x 36 |
258MB | (2) 256K x 36 | (2) 32M x 36 |
258MB | (2) 32M x 36 | (2) 256K x 36 |
260MB | (2) 512K x 36 | (2) 32M x 36 |
260MB | (2) 32M x 36 | (2) 512K x 36 |
264MB | (2) 1M x 36 | (2) 32M x 36 |
264MB | (2) 32M x 36 | (2) 1M x 36 |
272MB | (2) 2M x 36 | (2) 32M x 36 |
272MB | (2) 32M x 36 | (2) 2M x 36 |
288MB | (2) 4M x 36 | (2) 32M x 36 |
288MB | (2) 32M x 36 | (2) 4M x 36 |
320MB | (2) 8M x 36 | (2) 32M x 36 |
320MB | (2) 32M x 36 | (2) 8M x 36 |
384MB | (2) 16M x 36 | (2) 32M x 36 |
384MB | (2) 32M x 36 | (2) 16M x 36 |
512MB | (2) 32M x 36 | (2) 32M x 36 |
PIPELINE CACHE CONFIGURATION |
Note: If pipeline cache is on this board, it is factory installed at 256KB and is not configurable. The location is U6 & U7 and TAG. |
CACHE CONFIGURATION | |||
Size | Bank 0 | Bank 1 | TAG |
256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
512KB | (4) 64K x 8 | (4) 64K x 8 | (1) 32K x 8 |
1MB | (4) 128K x 8 | (4) 128K x 8 | (1) 32K x 8 |
Note: Depending on board revision, cache will either use this table or the above table. Board will not have both cache configurations. |
CACHE JUMPER CONFIGURATION | ||
Size | JS1 | JS2 |
256KB | pins 1 & 2 closed | pins 1 & 2 closed |
512KB | pins 1 & 2 closed | pins 2 & 3 closed |
1MB | pins 2 & 3 closed | pins 2 & 3 closed |
CPU SPEED CONFIGURATION | |
Speed | JK1 |
75MHz | pins 1 & 2, 5 & 6, 7 & 8 closed |
80MHz | pins 1 & 2, 4 & 5, 8 & 9 closed |
90MHz | pins 2 & 3, 5 & 6, 8 & 9 closed |
100MHz | pins 2 & 3, 4 & 5, 7 & 8 closed |
120MHz | pins 2 & 3, 5 & 6, 8 & 9 closed |
133MHz | pins 2 & 3, 4 & 5, 7 & 8 closed |
CPU VOLTAGE CONFIGURATION | |
Voltage | JV2 |
3.3v | pins 1 & 2, 3 & 4 closed |
3.5v | pins 1 & 2 closed |
CPU BUS/CORE FREQUENCY CONFIGURATION | |||
CPU speed | Ratio | JC1 | JC2 |
75MHz | 2/3 | pins 1 & 2 closed | pins 1 & 2 closed |
90MHz | 2/3 | pins 1 & 2 closed | pins 1 & 2 closed |
100MHz | 2/3 | pins 1 & 2 closed | pins 1 & 2 closed |
120MHz | 1/2 | pins 2 & 3 closed | pins 1 & 2 closed |
133MHz | 1/2 | pins 2 & 3 closed | pins 1 & 2 closed |
