DOLPHIN PERIPHERALS, LLC.
FASTISA-4001
Card Type | Parallel card |
Chip Set | Sun |
I/O Options | Parallel port |
Data Bus | 16-bit ISA |

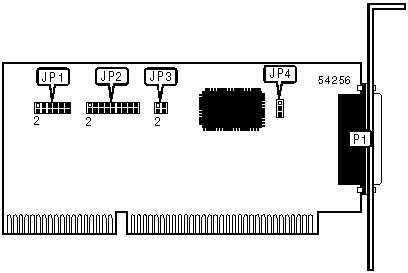

CONNECTIONS | |
Function | Label |
Parallel port | P1 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | Printer installed has a buffer | JP4 | Pins 2 & 3 closed |
Printer installed does not have a buffer | JP4 | Pins 1 & 2 closed |
PARALLEL PORT ADDRESS SELECTION | ||
Setting | JP1 | |
3BC | Pins 1 & 2 closed | |
» | 378 | Pins 3 & 4 closed |
278 | Pins 5 & 6 closed | |
268 | Pins 7 & 8 closed | |
27C | Pins 9 & 10 closed | |
26C | Pins 11 & 12 closed |
PARALLEL PORT INTERRUPT SELECTION | ||
IRQ | JP2 | |
3 | Pins 1 & 2 closed | |
4 | Pins 3 & 4 closed | |
» | 5 | Pins 5 & 6 closed |
7 | Pins 7 & 8 closed | |
9 | Pins 9 & 10 closed | |
10 | Pins 11 & 12 closed | |
11 | Pins 13 & 14 closed | |
12 | Pins 15 & 16 closed | |
15 | Pins 17 & 18 closed |
PARALLEL PORT MODE SELECTION | ||
Setting | JP3 | |
» | Bi-Directional (EPP/ECP) | Pins 1 & 2 closed |
Uni-directional | Pins 3 & 4 closed |
