UM8388 Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
UM8388
|
Data Bus |
16-bit ISA |
|
Card Size |
Half-length, half-height card |
|
Hard Drives supported |
Two IDE (AT) drives |
|
Floppy drives supported |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|
CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
40-pin IDE (AT) Interface connector-internal |
CN1 |
2-pin connector - drive active LED |
JP4 |
|
38-pin cable connector-floppy drive |
CN2 | ||
|

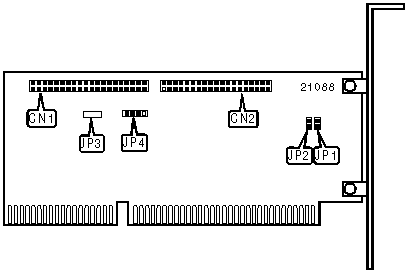

USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
UM8388 controller is primary in system |
JP1 |
Open | |
|
UM8388 controller is secondary in system |
JP1 |
Closed | |
| » |
Factory configured - floppy drive address on/off |
JP2 |
Unidentified |
| » |
Factory configured - I/O channel ready |
JP3 |
Unidentified |
|
|
|
|
 |
|
