4020 CARD Hard Disk/Floppy Controller Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
4020 CARD
|
Card Type |
Hard drive controller card |
|
Hard Drives supported |
Two IDE (AT) drives |
|
Floppy drives supported |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|
Data Bus |
16-bit ISA |
|
Card Size |
Half-length, half-height card |
|

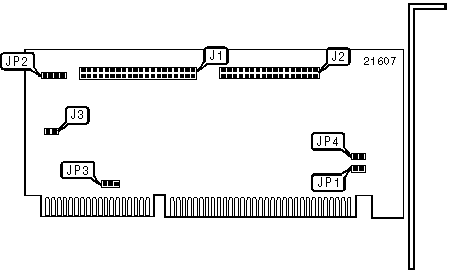

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
40-pin IDE(AT) connector |
J1 |
4-pin connector - drive active LED |
JP2 |
|
34-pin cable connector - floppy drive |
J2 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
IDE interface enabled |
J3 |
Closed |
|
IDE interface disabled |
J3 |
Open | |
| » |
Factory configured - do not alter |
JP1 |
Unidentified |
| » |
Factory configured - do not alter |
JP3 |
Unidentified |
| » |
Factory configured - do not alter |
JP4 |
Unidentified |
|
|
|
|
 |
|
